Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity

Brand Name : CSQ

Model Number : customized products

Certification : FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001

Place of Origin : China

MOQ : 20-50 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000pcs per month

Delivery Time : 20-45 work days

Packaging Details : Foam+carton box

Name : Customized ceramic sliding bearing

Category : Ceramic pump bearing

Material : Pressureless sintered silicon carbide+stainless steel

Size : Customized,according to the drawings

Use : canned motor pump

Package : Foam+carton box

keyword : canned motor pump bearing

type : crucial transmission part

Contact Now

SiC Sleeve Sliding Bearing for Canned Motor Pump

Product Overview:

This is a high-performance composite SiC/Stainless Steel Thrust Disc, engineered to handle extreme axial loads in demanding environments. It combines a wear-resistant Silicon Carbide (SiC) face with a structural Stainless Steel mounting substrate, offering an optimal balance of superior hardness and mechanical strength.

Key Features

Exceptional Wear & Abrasion Resistance: The Silicon Carbide face is one of the hardest materials available, providing outstanding resistance to wear and abrasion, significantly extending service life.
High Corrosion Resistance: The stainless steel substrate provides excellent resistance to rust and corrosion, while the SiC face is inert to most harsh chemicals.
Withstands Extreme Pressure: Designed to perform reliably under high axial loads and in boundary lubrication conditions.
Low Friction & High Thermal Conductivity: SiC's low coefficient of friction and high thermal conductivity help minimize heat generation and dissipate it effectively, reducing the risk of thermal seizure.
Robust Design: The stainless steel core ensures strong mechanical integrity and provides a reliable interface for press-fitting or securing the disc onto a shaft.

Typical Uses

Mechanical Seals: As a stationary or rotary face in seal assemblies for pumps and mixers.
Thrust Bearings: As the critical wear component in hydrodynamic and hydrostatic thrust bearings.
Subsea & Marine Equipment: In thrusters and propulsion systems exposed to seawater.
Chemical Processing Pumps: Where corrosion and abrasive fluids are present.
High-Performance Automotive & Aerospace: In turbochargers, transmissions, and other high-speed rotating machinery.

Key Properties of Pressureless Sintered Silicon Carbide

Property	Value
Max Temperature	up to 1650℃
Low density	3.15-3.18 g/cm3
Low thermal expansion	4.0 (10-6/℃)
High thermal conductivity	120 W/m°K
High hardness	2800 HV5
High elastic modulus	410GPa
Chemical stability	Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity

Our Factory and Processing Machines

We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.

Product Tags:

Customized Size SiC Thrust Disc

High Corrosion Resistance SiC Thrust Disc

High Thermal Conductivity SiC Thrust Disc

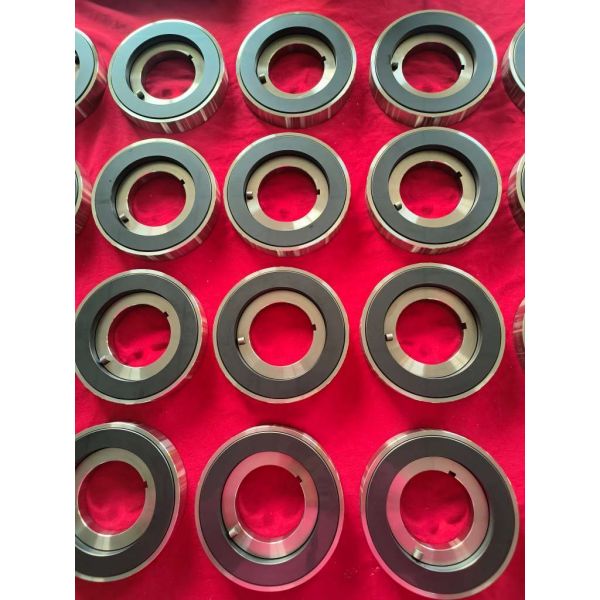

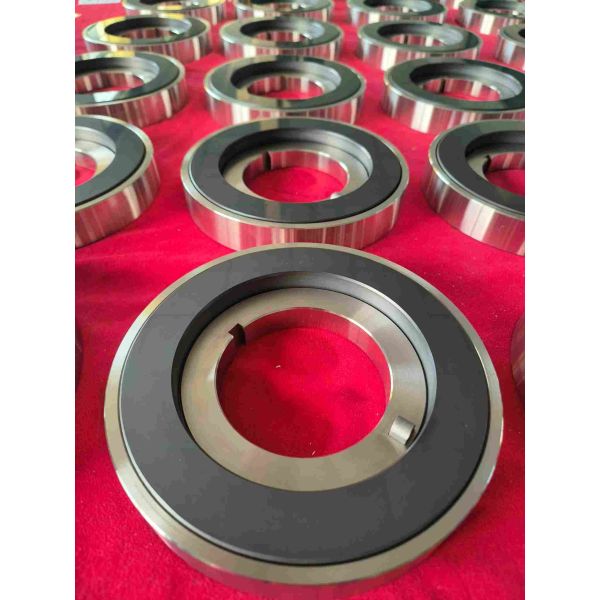

Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity Images
