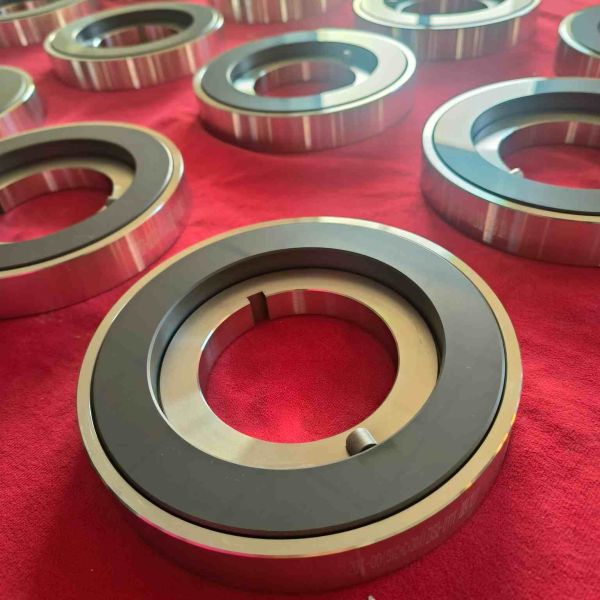

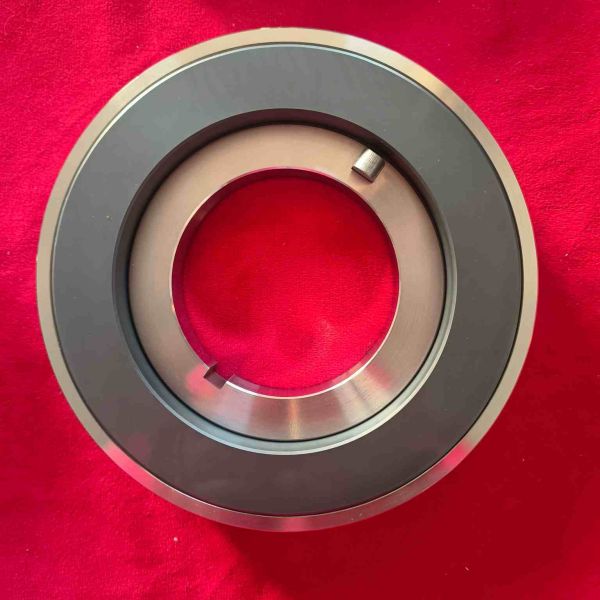

Silicon Carbide - Stainless Steel Thrust Disc
Product Overview
The Silicon Carbide-Stainless Steel Thrust Disc is a high-performance key component used for face sealing and axial positioning. It features an advanced composite structure that bonds an extremely wear-resistant Silicon Carbide face to a high-strength Stainless Steel substrate, achieving a perfect union of superior wear resistance and excellent structural integrity. This product is specifically engineered to address challenges in axial force management and sealing under harsh conditions such as high speed, high pressure, and corrosive media.
Material and Properties
1.Face Material: Pressureless Sintered Silicon Carbide
Extreme Hardness & Wear Resistance: Its high hardness, second only to diamond and CBN, provides excellent resistance to abrasive media and erosion.
Excellent Chemical Inertness: Resists corrosion from strong acids, alkalis, and oxidizers, outperforming most metallic materials.
High Thermal Conductivity: Rapidly dissipates frictional heat, preventing localized overheating and ensuring operational stability.
Low Friction Coefficient: Performs exceptionally well against counterparts like carbon and ceramics, reducing starting and running torque.
2.Substrate/Backing: Stainless Steel
Outstanding Mechanical Strength: Provides robust structural support, capable of withstanding high axial loads and installation stresses.
Good Toughness: Prevents brittle fracture of the component during assembly and under pressure shock.
General Corrosion Resistance: The stainless steel substrate (typically 304 or 316) offers fundamental rust and corrosion protection for the entire part.
Composite Advantage: This combination leverages the strengths of both materials: Silicon Carbide handles the harsh frictional and chemical environment, while the Stainless Steel ensures the structural integrity and ease of installation of the entire part, achieving a synergistic effect.
Working Principle
The thrust disc primarily serves two functions in equipment: Axial Load Bearing and Face Sealing.
Axial Load Bearing: As a core component in thrust bearings, it is fixed onto a rotating shaft or housing. Its flat, hard face is used to carry and transmit axial loads, limiting the axial movement of the shaft.
Face Sealing: In mechanical seals, it is pressed against another smooth face (the stationary ring) under fluid pressure and spring force, forming a friction pair. This pair rotates relative to each other, preventing medium leakage and achieving dynamic sealing.
Synergistic Operation: The SiC face is responsible for maintaining minimal wear and stable sealing performance during contact, while the stainless steel substrate ensures the entire disc does not deform under pressure and temperature, and transmits pressure evenly.
Key Specifications
| Attribute | Value |
| Name | Ceramic Sliding Bearing |
| Category | Ceramic pump bearing |
| Material | Pressureless sintered silicon carbide/Zirconia |
| Size | Customized according to drawings |
| Use | Canned motor pump |
| Package | Foam + carton box |
| Property | Value |
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Application Scenarios
This composite thrust disc is widely used in rotating equipment demanding high reliability and long service life:
- Mechanical Seals: The preferred friction pair material for mechanical seals in chemical pumps, process pumps, slurry pumps, etc.
- Thrust Bearing Assemblies: Used in multi-stage centrifugal pumps, water turbines, compressors, and other rotating machinery that must withstand significant axial thrust.
- High-Temperature & High-Pressure Valves: Serves as a valve disc or seat, tolerating harsh media and pressure differentials.
- Oil & Gas Industry: Used in downhole tools, piston and liners for mud pumps. Automotive Industry: Friction rings for high-performance brakes, turbocharger components.
Product Images
Silicon carbide sliding bearing
Precision ceramic components
Manufacturing Capabilities
We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.
Production line for ceramic bearings
Precision machining process
Quality control inspection
